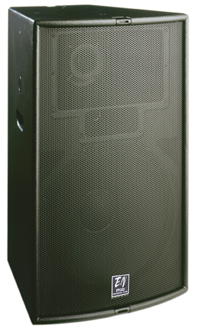

W3 三分频全音音箱
功率：400W/8 OHM
尺寸：(W)435mmX (H)708mm X (D)425mm

TYRECompact , Three-way passive,vented trapezoid
FREQUENCY RESPONSE(1)：    5 5Hz-18K H z+3db-3db
DRIVES           15”（380mm)bassdriver
                 6.5(165mm)horn loaded mid-range
           1”（25mm）exit HF compression driver
RATED POWER(2)：           400WA D S , 800Wpeak
RECOMMENDED：              400W-800Winto4 ohm
SENSITIVITY：              127d b
MAXIMUM：         SPL127db continuous,130db peak
N0MINAL IMPEDANCE ：       8 ohm
DISPERSIN：     (-6db)80°honzontal,50°vertical
DIMENSIONS：       (W)435mmX (H)708mm X (D)425mm
WEIGHT：                   32KG (70 Ibs)
